Transport

Choose equipment / enquire

Transport

up to 40 kg
Cargo in the transport configuration
up to 30 m
Cargo lowering with the winch option

Transport

up to 40 kg
Cargo in the transport configuration
up to 30 m
Cargo lowering with the winch option
Transport payload
up to 40 kg
Winch lowering
up to 30 m
Delivery to a designated location
GPS

Supplies for the ground team

Beyond road access
Delivery to hard-to-reach terrain
Matched to the delivery site
Landing, release or winch lowering

Supplies for the ground team

Beyond road access
Delivery to hard-to-reach terrain
Matched to the delivery site
Landing, release or winch lowering

Supplies where conventional transport stops

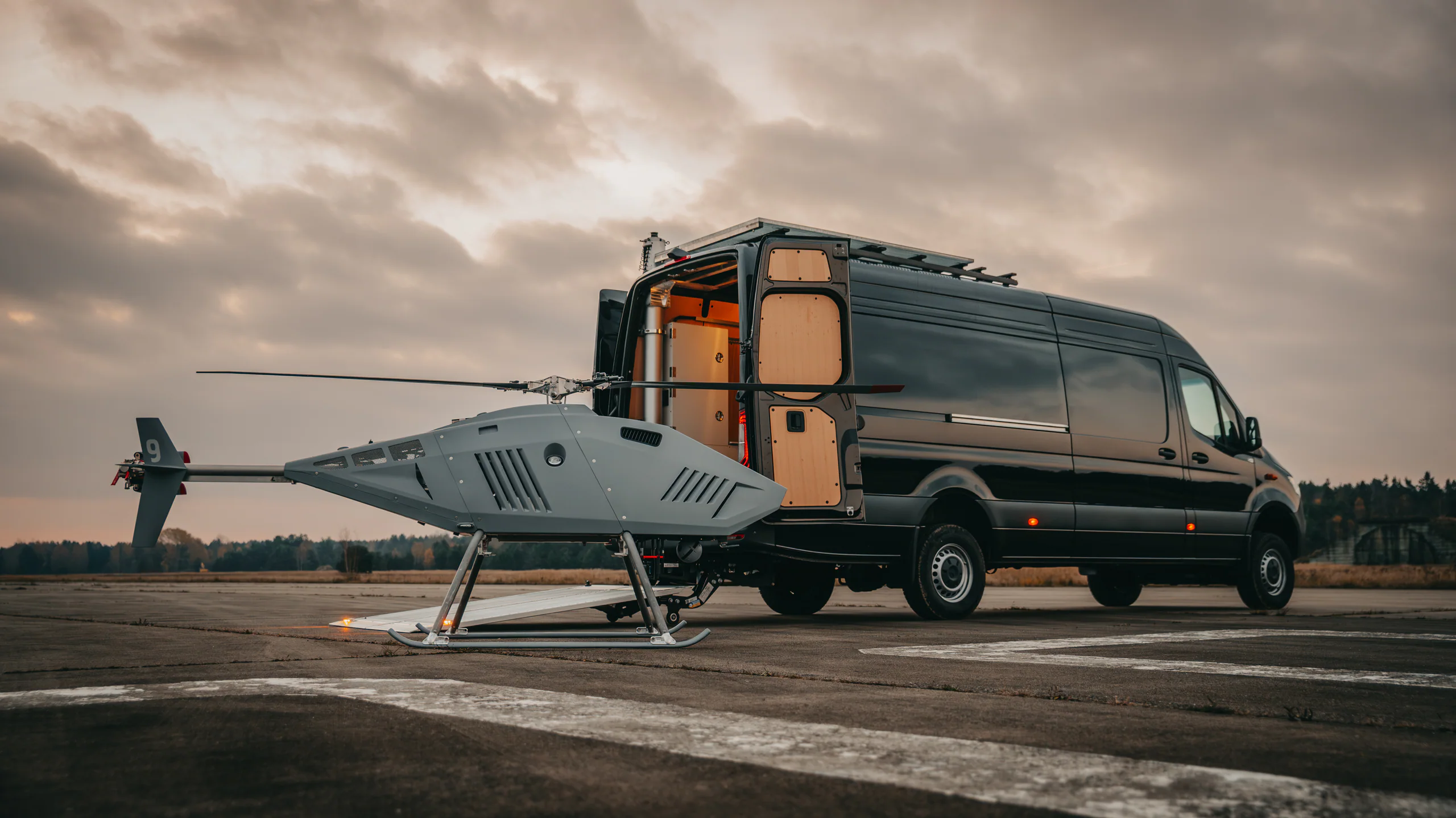

Heliaz 152 delivers up to 40 kg of supplies or equipment to places cut off by terrain or damaged infrastructure. Cargo is released after landing, by precision drop or lowered on a winch from up to 30 m, reducing risk to ground convoys.

Transport payload
up to 40 kg

Equipment where it is needed

Ground teams
Resupply of a remote site
Mission-specific cargo
Equipment selected for the task

Equipment where it is needed

Ground teams
Resupply of a remote site
Mission-specific cargo
Equipment selected for the task

One carrier, multiple delivery scenarios

An interchangeable transport module adapts the same aircraft for resupply and specialist tasks. Available concepts include delivering CBRN containment kits, transporting robotic systems into hazardous areas and deploying decoys.

Winch lowering
up to 30 m
01 03Equipment

Configure your payload

Discuss requirements

What do you need to achieve?

Select the required function instead. We will work with you to specify the equipment.

Continue to enquiry and selection (0)

References and projects

Choose a specific device for integration assessment3 catalogue models · specifications and sources

Models shown: 3 / 3

Draganfly

Precision Delivery System — Winch

Reference system · winch

Catalogue alternative · integration unconfirmed

Controlled lowering of a small parcel with a camera view of the delivery area.

Winch load: minimum / maximum
1 kg / 5 kg
Tether length
10–30 m
Camera optical zoom
5×
Camera stabilisation
3 axes
Manufacturer's specified platform
Commander 3XL

Designed for Commander 3XL, not confirmed for Heliaz 152. A reference for individual assessment with the manufacturer. The 5 kg limit is for the winch, not the separate delivery box.

Oregon Blue Unmanned

OBU-0731 Cargo Hook

Component · cargo hook

Catalogue alternative · integration unconfirmed

A standalone servo-operated hook for releasing a suspended load.

Weight
257 g
Manufacturer's hook load rating
75 lb (approximately 34 kg)
Supply voltage
7–14 V
Material
6061-T6 aluminium
Release mechanism
Servo-operated

Hook capacity is not aircraft or complete sling-system capacity. This is not a winch; mounting, retention and power-loss behaviour require separate validation.

Pelican

1520 Protector Case

Support equipment · cargo case

Catalogue alternative · integration unconfirmed

A protective case for sensitive equipment during transport.

Weight with foam
4.24 kg
Weight without foam
3.76 kg
External dimensions
50.24 × 40.06 × 18.82 cm
Body material
Polypropylene
Ingress protection
IP67

The case is neither a lifting attachment nor an airdrop-certified container. Its empty weight counts towards the carried load. Figures refer to the linked 1520 variant.
